(Package IV) Hantek 6074BE USB Automotive Diagnostic Oscilloscope 70MHz 4 Channel over 80 types of measurement function

$619.00
Unit price per

Quantity

Only 16 left!

Item No. LM99M85A Weight: 7.5 kg

Estimated: Standard 7-15 working days.
Expedited Shipping 3-6 working days.

Description

(Package IV) Hantek 6074BE USB Automotive Diagnostic Oscilloscope 70MHz 4 Channel

Please Note: This price is for 6074BE Kit IV. Please check below form carefully!!!

Hantek6074BE Accessory Kit
Model No.	Accessory
	Paper case	Aluminum case	HT18A	HT19	HT201	HT25	HT30A	HT301	HT307	HT308	HT310	HT324	CC-65	CC-650
	Paper case	Aluminum case	HT18A	HT19	HT201	HT25	HT30A	HT301	HT307	HT308	HT310	HT324	CC-65	CC-650
6074BE KitⅠ	1	0	1	1	0	1	1	0	1	0	0	3	0	0
6074BE Kit Ⅱ	0	1	2	2	2	1	4	1	1	0	0	2	0	0
6074BE Kit Ⅲ	0	1	4	4	4	4	4	1	1	4	1	2	0	0
6074BE Kit Ⅳ	0	1	4	4	4	4	4	1	1	4	1	2	1	1

Hantek6074BE Series Kit

Standard equipped over 80 types of automotive measurement function (Ignition Action/The Sensor/Bus Diagnosis/Performer/Startup&Charge); USB 2.0 interface plug and play, and no need extra power supply; Support tablet PC; Support WIN10/ WIN8/WIN7 etc. Free software upgrading constantly, higher cost performance; Support USBXI, easy to operate. 4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth, small size, easy for carrying. Dynamic cursor tracking, waveform record and replay function.

Feature

Standard equipped over 80 types of automotive measurement function;First Diagnosis: Intake manifold vacuum ignition,Petrol fumes adjusting valve vacuum ignition,Idle exhaust ignition, Starting exhaust ignition;Ignition: primary and secondary;Sensor:Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position;Bus Diagnosis:CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus;Performer: Petrol/Diesel

Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use. Support WIN10/ WIN8/WIN7 etc.

USB 2.0 interface plug and play, and no need extra power supply;

Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check function. Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.

Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.

4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth,

The waveform data could be output to EXCEL,BMP,JPG.

Waveform averaging, afterglow,lightness control, reverse, add, subtract, multiply, divide, X-Y display.

FFT spectrum analyzer

One computer could connect with multiple oscilloscopes, expand the channel number easily.

Provide secondary development library DLL; Provide Labview\VB\VC\QT developing examples

Specification:

Model	Hantek6074BE KIT IV
Bandwidth	70MHz
Automotive Measurement Function	Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition; Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position; CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus; Performer: Petrol/Diesel; Starter and charging circuits
Channel	4 CH
Real-time Sampling Rate	1GSa/s
Memory Depth	64K
Time Base Precision	+/-50ppm
Time Base Range	2ns/div-1000s/div (1-2-4 sequences)
Input Impedance	1M25pF
Input Sensitivity	2mV/div10V/div
Vertical Resolution	8Bit
Vertical Displacement Range	2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe 200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe
DC Gain Accuracy	+/-3%
Bandwidth	20MHz
Trigger Mode	Edge, Pulse, Video, Alternative
Trigger Source	CH1, CH2, CH3,CH4
Waveform Signal Process	+,-,x,÷,FFT, Invert
Cursors Measurement	Cross, Trace, Horizontal, Vertical
Auto Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

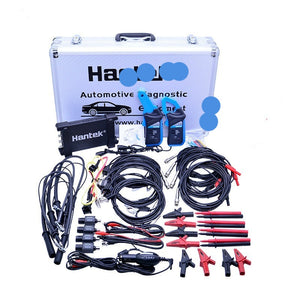

Packing List:
1x 6074BE oscilloscope
1x USB Cable
1x Software CD
1x HT307
4x HT18A
4x HT19
4x HT25
4x HT30A
2x HT324
4x HT201
1x HT301
4x HT308
1x HT310
1x CC-65
1x CC-650
1x Metal Case
