[Automotive Oscilloscope Starter Kit] PicoScope 2205A Full Kit 2 channel + AWG 25MHz, 8-bit Oscilloscope

  • $812.00
    Unit price per

Only 37 left!
Item No. LM99M177-2 Weight: 3.8 kg
Estimated: Standard 7-15 working days.
                      Expedited Shipping 3-6 working days.

[Automotive Oscilloscope Starter Kit] PicoScope 2205A Full Kit 2 channel  + AWG 25MHz, 8-bit Oscilloscope





Features:

  • 2 channels
  • 25 MHz bandwidth
  • With Probes
  • Up to 1 GS/s sampling rate
  • Arbitrary waveform generator
  • Advanced digital triggers
  • Persistence display modes
  • USB connected and powered
  • Mask limit testing
  • Serial bus decoding



Specifications:

PicoScope 2200A Series Specifications
Oscilloscope – Vertical
Model PicoScope 2204A PicoScope 2205A PicoScope 2206A PicoScope 2207A PicoScope 2208A
Input channels 2
Bandwidth 10 MHz 25 MHz 50 MHz 100 MHz 200 MHz
Rise time (calculated) 35 ns 14 ns 7 ns 3.5 ns 1.75 ns
Input type BNC
Vertical resolution 8 bits
Enhanced vertical resolution Up to 12 bits
Input sensitivity 10 mV/div to 4 V/div (10 vertical divisions)
Input ranges ±50 mV, ±100 mV, ±200 mV, ±500 mV, ±1 V, ±2 V, ±5 V, ±10 V, ±20 V
Input coupling Software selectable AC/DC
Input characteristics BNC, 1 MΩ ∥ 14 pF BNC, 1 MΩ ∥ 13 pF
DC accuracy ±3% of full scale
Analog offset range
(vertical position adjust)
none ±250 mV (50 mV to 200 mV ranges)
±2.5 V (500 mV to 2 V ranges)
±20 V (5 V to 20 V ranges)
Overvoltage protection ±100 V (DC + AC peak)
Oscilloscope – Horizontal
Maximum sampling rate (real-time)
1 channel
2 channel
100 MS/s
50 MS/s
200 MS/s
100 MS/s
500 MS/s
250 MS/s
1 GS/s
500 MS/s
1 GS/s
500 MS/s
Maximum sampling rate (repetitive signals, ETS mode) 2 GS/s 4 GS/s 5 GS/s 10 GS/s 10 GS/s
Maximum sampling rate (continuous streaming mode) 1 MS/s 9.6 MS/s
Maximum waveforms per second 2200 3300 5700 6300 8500
Timebase ranges 10 ns to 5000 s/div 5 ns to 5000 s/div 2 ns to 5000 s/div 1 ns to 5000 s/div 500 ps to 5000 s/div
Buffer memory# 8 kS 16 kS 32 kS 40 kS 48 kS
Buffer memory (streaming mode) 2 MS per channel in PicoScope software. 100 MS (shared) in PicoScope software.
Waveform buffer
normal triggering
rapid block triggering
Up to 10,000 waveforms
not applicable
Up to 10,000 waveforms
Up to 32 waveforms
Timebase accuracy ±100 ppm ±50 ppm
Sample jitter < 30 ps RMS < 5 ps RMS
Spectrum analyzer
Frequency range DC to 10 MHz DC to 25 MHz DC to 50 MHz DC to 100 MHz DC to 200 MHz
Display modes Magnitude, peak hold, average
Window types Rectangular, Gaussian, triangular, Blackman, Blackman–Harris, Hamming, Hann, flat–top
Number of FFT points Selectable from 128 to half the available buffer memory in powers of 2
Scale / units X axis : linear or log 10
Y axis : logarithmic (dbV, dBu, dBm, arbitrary) or linear (volts)

* Buffer memory is shared between active channels.

Dynamic performance (typical)
Crosstalk (full bandwidth) Better than 200:1 (equal ranges) Better than 400:1 (equal ranges)
Harmonic distortion < -50 dB at 100 kHz, full–scale input
SFDR > 52 dB at 100 kHz, full–scale input
Noise < 150 μV RMS (±50 mV range) < 200 μV RMS (±50 mV range)
Bandwidth flatness (at scope input) (+0.3 dB, -3 dB) from DC to full bandwidth
Triggering
Sources Ch A, Ch B
Trigger modes None, auto, repeat, single None, auto, repeat, single, rapid (segmented memory)
Advanced triggers Edge, window, pulse width, window pulse width, dropout, window dropout, interval, logic.
Trigger types, ETS Rising or falling edge
Trigger level Adjustable over whole of selected voltage range
Trigger sensitivity Digital triggering provides 1 LSB accuracy up to full bandwidth. In ETS mode, typical 10 mV p-p at full bandwidth
Maximum pre-trigger capture 100% of capture size
Maximum post-trigger delay 4 billion samples
Trigger rearm time PC-dependent < 2 µs on fastest timebase
Maximum trigger rate PC-dependent Up to 32 waveforms in a 64 μs burst
Function generator
Standard output signals Sine, square, triangle, DC voltage, ramp, sinc, Gaussian, half-sine
Pseudorandom output signals None White noise, PRBS
Standard signal frequency DC to 100 kHz DC to 1 MHz
Sweep modes Up, down, dual with selectable start/stop frequencies and increments
Output frequency accuracy ±100 ppm ±50 ppm
Output frequency resolution < 0.01 Hz
Output voltage range ±2 V
Output adjustments Any amplitude and offset within ±2 V range
Amplitude flatness (typical) < 1 dB to 100 kHz < 0.5 dB to 1 MHz
DC accuracy ±1% of full scale
SFDR > 55 dB @ 1 kHz full–scale sine wave > 60 dB @ 10 kHz full–scale sine wave
Connector type Front panel BNC with 600 Ω output impedance
Overvoltage protection ±10 V
Arbitrary waveform generator
Update rate 2 MS/s 20 MS/s
Buffer size 4 kS 8 kS
Resolution 12 bits
Bandwidth >100 kHz >1 MHz
Rise time (10% to 90%) < 2 µs < 120 ns
Math channels
Functions −x, x+y, x−y, x*y, x/y, x^y, sqrt, exp, ln, log, abs, norm, sign, sin, cos, tan, arcsin, arccos, arctan, sinh, cosh, tanh, freq, derivative, integral, min, max, average, peak, delay
Operands A, B (input channels), T (time), reference waveforms, constants, Pi
Automatic measurements
Oscilloscope mode AC RMS, true RMS, cycle time, DC average, duty cycle, falling rate, fall time, frequency, high pulse width, low pulse width, maximum, minimum, peak to peak, rise time, rising rate.
Spectrum mode Frequency at peak, amplitude at peak, average amplitude at peak, total power, THD %, THD dB, THD plus noise, SFDR, SINAD, SNR, IMD
Statistics Minimum, maximum, average and standard deviation
Serial decoding
Protocols CAN, LIN, I²C, UART/RS-232, SPI, I²S, FlexRay
Inputs All input channels with any mixture of protocols
Mask limit testing
Mask generation Auto generate from captured waveform, manual drawing, manual coordinate entry
Actions Highlight on screen, select in buffer overview, activate alarm
Statistics Pass/fail, failure count, total count
Alarms
Initiating events Capture, buffer full, mask fail
Alarm actions Beep, play sound, stop/restart capture, run executable, save current buffer/all buffers, trigger signal generator
Display
Interpolation Linear or sin(x)/x
Persistence modes Digital color, analog intensity, fast, custom
Data export
Output file formats BMP, CSV, GIF, JPG, MATLAB 4, PDF, PNG, PicoScope data, PicoScope settings, TXT
Output functions Copy to clipboard, print
Environmental
Temperature range (operating) 0 °C to 50 °C
Temperature range (stated accuracy) 20 °C to 30 °C
Temperature range (storage) –20 °C to +60 °C
Humidity range (operating) 5% to 80% RH non-condensing
Humidity range (storage) 5% to 95% RH non-condensing
Physical properties
Dimensions (including connectors) 142 x 92 x 19 mm
Weight < 0.2 kg (7 oz)
Software
Software included PicoScope 6 for Windows oscilloscope software (all models)
PicoLog for Windows data logging software (PicoScope 2204A and 2205A only)
Optional free software PicoScope 6 Beta for Linux and OS X. Drivers for Linux and OS X.
Languages Chinese (simplified), Chinese (traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish, Turkish
General
Additional hardware supplied Quick start guide, software CD–ROM
PC requirements Microsoft Windows XP (SP3), Vista, Windows 7 or Windows 8 (not Windows RT).
PC connectivity USB 2.0 port (compatible with USB 1.1 and USB 3.0; USB 1.1 not recommended)
Power requirements Powered from USB port
Safety approvals Designed to EN 61010-1:2010
Compliance RoHS, WEEE, and LVD compliant. Tested to meet EN61326-1:2006 and FCC Part 15 Subpart B.
Total satisfaction guarantee In the event that this product does not fully meet your requirements you can return it for an exchange or refund. To claim, the product must be returned in good condition within 14 days.
Warranty 1 year

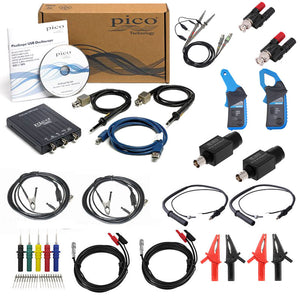

Package List:

1x PicoScope 2205A Main Unit
2x Probe
1x USB Cable

1x Hantek CC65
1x Hantek CC650
2x Hantek PP80 Probe
2x Hantek HT311 BNC to Banana Adapter
2x Hantek HT201 20:1 Attenuator
2x Hantek HT25 Auto Ignition Probe
2x Hantek HT308 Coil Probe
5x Hantek HT307 Needle Back Test Probe
2x Hantek HT30A Scope Leads
4x Hantek HT18A Crocodile Clip
