XTOOL EZ500 HD Heavy Duty Full System Diagnosis with Special Function (Same Function as XTOOL PS80HD)
Top Reasons to Buy XTOOL EZ500 HD:
Easy registration with EZ500 HD connected to WIFI
One-click software update via WIFI
Remote access
Diagnosis reports in PDF file
Record and playback live data
8.0 inch multi-touch screen
On-board battery
Extensive vehicle coverage for most US, Asian and European vehicle makes
Language supported: English only
Layout of EZ500 HD
Top View of EZ500 HD Tablet
① DC Charging Interface: Battery charge, DC 12V.
② DB15 Interface: Directly connect with truck to establish wire connection.
③ USB Type C Interface: Compatible with HDMI TV; Transfer audio and video simultaneously
④ Power Button
Side View of EZ500 HD Tablet
① Headphone Jack
② TF Card Slot
③ Mini HDMI Port
Front View of EZ500 HD Tablet
Back View of EZ500 HD Tablet
EZ500 HD Exploded Diagram

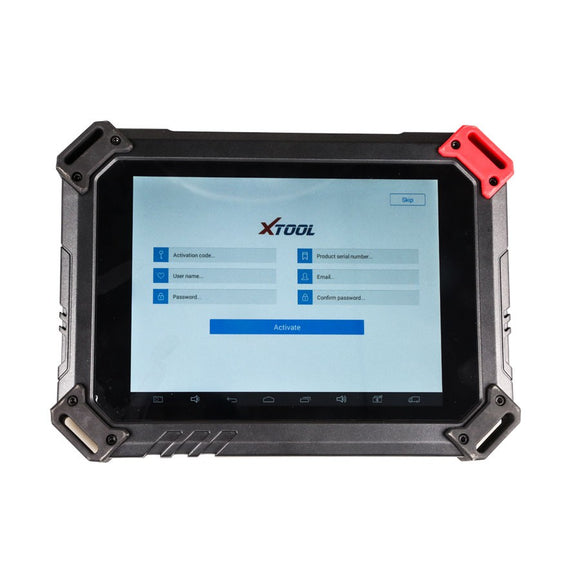

Easy registration with EZ500 HD connected to WIFI. Don’t bother to use PC for registration
.
Connect to the vehicle directly with cable
① EZ500 HD Mainframe
② Main Test Cable
③ OBD2 16pin Connector
④ OBD 6+9 Pin Connector or other connectors
⑤ Vehicle
One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!
Remote access, which is perfect for training, demonstration and even remote diagnosis.
Diagnosis reports in PDF file. Print out the diagnosis report and show it to vehicle owners when they come and fetch their vehicles. They will be really happy knowing what kinds of problems have been fixed for their vehicles.
Extensive vehicle coverage for most US, Asian and European vehicle makes
DIESEL: VOLVO, Allison, Bendix, Mercedes-Benz, CAT, DAF, ERF, Foton, Fuso, Hino, Hyundai, International, Isuzu, IVECO, Kenworth, MACK, MAN, RENAULT, SCANIA, Nissan UD, WABCO, etc
It can also diagnose trucks via ENGINE: Cummins, Detroit Diesel, MaxxForce, etc
It can also diagnose trucks via ELECTRONIC: Cummins and more…
Full System Diagnosis: Engine, ABS, ACM, CDS, COM, SRS, etc.
Basic Function: read fault codes, clear fault codes, live data, actuation, active test
Accurate Live Data in Both Wave and Dashboard Form
Special Function: Service reset, DPF & ADBlue reset, injector coding, cylinder cutoff, fuel pump calibration, ERG learning, learned value reset, maximum vehicle speed setting, limited hand throttle, etc.
Specifications:
| Operating System: | Android 4.4.4 |
| Memory: | 1GB RAM,16GB Flash |
| CPU: | Quad Core, 1.6GHz |
| Display: | 8.0 Inch IPS 10-Point Multi-touch Screen with 1024×600P Resolution |
| Sensors: | Gravity Sensor, Light Sensor |
| Input/Output: | Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, DC5.5, TF Card Port |
| Battery: | 4000mAh, 7.4V |
| Wi-Fi: | WIFI 2.4Ghz |
| Power Voltage: | 12V |
| Power Consumption: | 29.6W |
| Operating Temperature: | -20 to 50℃(-4 to 126℉) |
| Humidity: | <90% |
| Dimension: | (L*W*H): 240*177*30mm |
Package including:
1pc x IVECO-30
1pc x IVECO-30-1
1pc x CUMMINS-9
1pc x YUCHAI-4
1pc x CAT-9
1pc x CUMMINS-6
