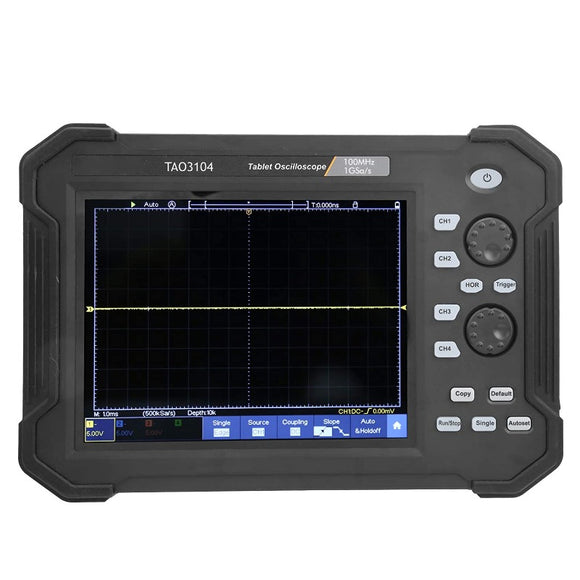

Owon TAO3104 100MHz 4 Channel 1GS/s Tablet Oscilloscope

Quantity

Only 0 left!

Item No. LM99M154 Weight: 2.5 kg

Estimated: Standard 7-15 working days.
Expedited Shipping 3-6 working days.

Features:

Bandwidth : 100MHz, 1GS/s sample rate
8-bit high resolution ADC
Max 40M record length; max 45000 wfms/s waveform refresh rate
Low back ground noise
8 inch 800 x 600 high resolution LCD, multi-touch screen, more user-friendly operation experience
SCPI, and LabVIEW supported
Multi- trigger, and bus decoding function
Multi-interface integration - USB host, USB device, LAN, WiFi ()

Specifications

Model	TAO3104
Bandwidth	100MHz
Sample Rate	1GS/s
Vertical Resolution (A/D))	8 bits
Record length	40M
Waveform Refresh Rate	45000 wfms/s
Horizontal Scale (s/div))	1ns/div - 1000s/div, step by 1 - 2 - 5
Channel	4
Display	8" color LCD, 800 x 600 pixels display?multi-touch screen
Input Impedance	1MΩ ± 2%, in parallel with 15pF ± 5pF
Max Input Voltage	1MΩ ≤ 300Vrms;
Probe Attenuation Factor	0.001X - 1000X, step by 1 - 2 - 5
Input Coupling	DC, AC, GND
Vertical Sensitivity	1mV/div - 10V/div (at input)
Trigger Type	Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, UART(RS232), and CAN (optional)
Bus Decoding(optional)	I2C, SPI, UART(RS232), CAN
Trigger Mode	Auto, Normal, and Single
Automatic Measurement	Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase A→B ↑, Phase A→B↓, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edges Count, Area, Cycle Area
Waveform Math	+, -, ×, ÷, FFT?FFTrms,Intg,Diff,Sqrt, User Defined Function, Digital Filter
Waveform Storage	100 waveforms
Communication Interface	USB host, USB device, USB port for PictBridge,LAN, and WIFI (optional)
Frequency Counter	available
Battery	7.4V, 8000mAh, 5 hours operation
Dimension(WxHxD)	270x191x48
