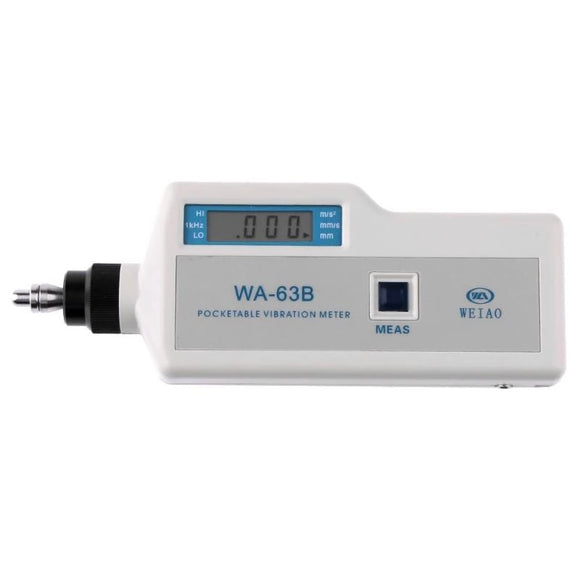

WA-63B Portable LCD Digital Vibration Meter Handheld Vibrometer Analyzer
Features:
1. Can be used to measure the vibration of the rotating machinery.
2. Support measuring vibration acceleration and effective values and peak values of vibration velocity.
3. Easy to operate and convenient to carry.
4. Mainly used for quick inspection of gas turbine, water power machine, motor, fan, pump, compressor, machine tool and so on, and preventive check for mechanical equipment failure.
5. LCD direct display; with AC signal output socket, can be used for recording and analyzing vibration signals.
6. When measuring, just hold the instrument, contact the tip of the instrument with the measured object and press and hold a key.
7. The instrument can measure acceleration, velocity and displacement. For acceleration, two measurement ranges can be selected (10Hz~1KHz or 1KHz~15KHz).
8. A 9V battery (6F22) is required. Because the instrument has automatic power off function, there is no switch key.
Specifications:
Measurement range:
Acceleration: 0.1~ 199.9m/s2peak (RMSx1.414)
Speed: 0.1~ 199.9m/sRMS
Displacement: 0.001~ 1.999mm P-P (RMSx2.828)
Measurement accuracy: 80Hz
Acceleration: ±5% ±2
Measure the range of vibration:
Acceleration: 10Hz~ 1KHz (L0)
1KHz~15KHz (HI)
Speed: 10Hz~1KHz
Displacement: 10Hz~1KHz
