Xhorse VVDI BIMTool Pro New Generation of VVDI BMW Programmer, Newly Add DolP Protocol, Support ISN Coding onboard

  • $1,099.00
    Unit price per

Only 50 left!

Item No. LE60P07A
Weight: 0.0 kg
Estimated: Standard 7-15 working days.
                      Expedited Shipping 3-6 working days.

Xhorse VVDI BIMTool Pro New Generation of VVDI BMW Programmer Free Shipping





Notice:

1. Please don't use the Internet Port and USB Port at the same time.
For FEM/BDC Programming using the USB Port connect is ok; Others Programming you can connect the Internet Port.

2. When connect the port with PC, first it will display"Booting", after 20 secs it will display as "BMW", then it means the connect ok.



Highlights of VVDI BIMTOOL Pro:

1. Add Ethernet Port
Aside of USB port, which will speed up the programming / coding, usually it will only take several minutes.

2. Add Wifi Connection (WIFI 802.1b/g, 150 Mbps high-speed connection, and WIFI OTA upgrade)
When upgrading the machine firmware, you can connect the WIFI.

3. Latest Version: V1.8.0, Operating System: Compatible with WIN7, 8, 10 etc, no computer operation system limitation.


Free Download V1.8.0 VVDI BMW Tool Software

VVDI BIMTOOL Pro User Manual PDF



4. Language: English, Italian, Spanish, Deutsch, Hungarian, Polish.

5. Support BMW ECU Programming(NBT/CIC), BMW E-Sys and Rhelngold Diagnostic System, able to replace the specialized devices, and greatly speed up the F/G Classis Programming.
(Being connected via the network cable)

6. Support DolP Vehicle/ Module Programming

7.Support directly read ISN data without disassembling the ECU (N13/N20/N55/N63)



Xhorse VVDI BIMTool Pro Functions:

1. E-Series programming, coding, DTCs
1). Support autodetect car chassis
2). Support scan all car units
3). Support calculate all configuration units
4). Support read/write car configuration(FA)
5). Support input HW/ZB number to programming
6). Support calculate default coding from FA
7). Support edit detail coding information, change car config
8). Support many languages DTC code

2. F-Series programming, coding, DTCs
1). Support autodetect car chassis
2). Support read/write car configuration(FA)
3). Support calculate programming files from unit, car, whold database
4). Support calculate default coding from FA
5). Support edit detail coding information, change car config
6). Support detail special function list from coding
7). Support many languages DTC code

3. CAS1/CAS2/CAS3/CAS3+/CAS3++ISTAP OBD key learning
1). Support read key information, write key inforamtion
2). Support key learning
3). Support read/write EEPROM
4). Support read ECU/gearbox synchronize codes
5). Support write ECU/gearbox synchronize codes
6). Support synchronize ECU and CAS
7). Support synchronize CAS and ELV
8). Support read ISN via OBDII
9). Support reset KM via OBDII
10). Support disable key/enable key

4. CAS4(1L15Y)/CAS4+(5M48H) OBD key learning
1). Support read CAS encrypt key via OBDII
2). Support key learning via programmer and via ignition switch
3). Support disable key/enable key
4). Support erase key position
5). Support reset KM via OBDII
6). Support read ISN via OBDII
7). Support backup/restore coding
8). Support update original CAS4 file

5. FEM/BDC OBD key learning
1). Support read FEM/BDC encrypt key via OBDII
2). Support key learning via programmer and via ignition switch
3). Support disable key/enable key
4). Support erase key position
5). Support reset KM via OBDII
6). Support read ISN via OBDII
7). Support backup/restore coding
8). Support exchange used FEM/BDC
9). Support close/open transport mode
10). Support reset ECU lock
11). Support switch on ignition without working key

6. CAS EEPROM dump key learning
1). Support EWS1, EWS2, EWS3, EWS4, CAS1(0K50E), CAS2(2K79X), CAS3(0L01Y), CAS3+(0L15Y), CAS3++ISTAP(0L15Y, 0M23S)
2). Support prepare dealer key via programmer
3). Support disable key/enable key
4). Support read ISN from working key

7. 8HP Gearbox renew
1). Support clear ISN in 8HP gearbox
2). Support backup/restore coding
3). Support reset adaptation information

8. Read synchronize code from E-Series ECU: Support MEV9N46L, MSV70, MSS60, MS450, N62 etc

9. Read E-Series/F-Series ECU ISN via OBDII
1). Support MSV80, MSV801, MSD80, MSD81, MSD802, MSD812, MSD851
2). Support MED17xx/MVD17xx/MEVD17xx/MV1722
3). Support MED172/MEV17N46/ME17N45
4). Support MEVD172Y/MEVD172/MEVD1725/B38/X63TU

10. Support exchange ECU and CAS
1). Support write ECU ISN via OBDII
2). Support write ECU VIN via OBDII
3). Support change ECU ISN and VIN with EEPROM dump
4). Support chagne CAS1/CAS2/CAS3/CAS4 ISN and VIN with EEPROM dump

11. CAS repair(OBD&EEPROM)
1). Support repair ISTAP CAS
2). Support repair CAS EEPROM(Service mode EEPROM), you can start engine after repair the file(CAS1,CAS2,CAS3,CAS3+,CAS3++ISTAP)

12. CAS3+/CAS4+ lost all dump file support restore ISN and VIN
1). Support CAS3+(1L15Y) encrypt version
2). Support CAS3++(ISTAP) version
3). Support CAS4+(5M48H) version

13. File KM calibration
1). Support EWS1, EWS2, EWS3, EWS4
2). Support CAS1(0K50E), CAS2(2K79X), CAS3(0L01Y), CAS3+(0L15Y, 0M23S)
3). Support CAS4(1L15Y), CAS4(5M48H, 1N35H)
4). Support E-Series dashboard EEPROM(M35080)
5). Support F-Series dashboard EEPROM(35160, 35128)

14. Unlock HITAG2 key: Support lock hitag2 key made from BMW TOOL via programmer

15. EWS3/EWS4 can read EEPROM, write EEPROM via CAS PLUG





BMW BIMTool Pro E /F Chassis Programming & Coding:

●Program / Code BMW Exx

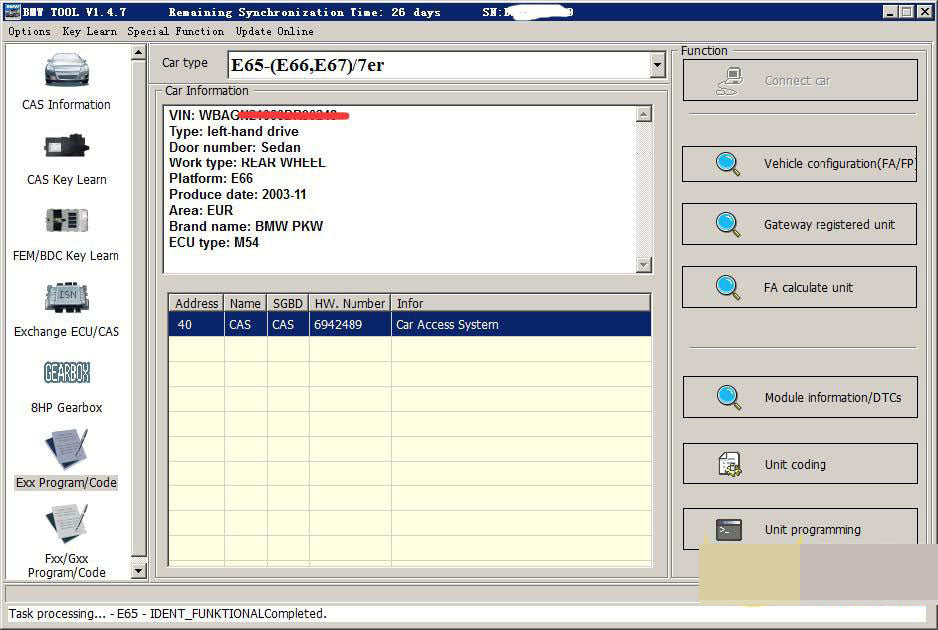

1. Connect Car
Can auto detect vehicle model, read module information, support chassis: E36, E38, E39, E46, E52, E53, E60, E63, E64, E65, E66, E67, E70, E71, E72, E83, E85, E86, E89, E90, E91, E92, E93, K1X, K24, KH2, R50, R52, R53, R55, R56, R57,
RR1,.etc chassis




2. Read and write Vehicle configuration(FA/FP)
Can read the configuration information inside of vehicle module, and to change the vehicle configuration information for replacing second-hand module.

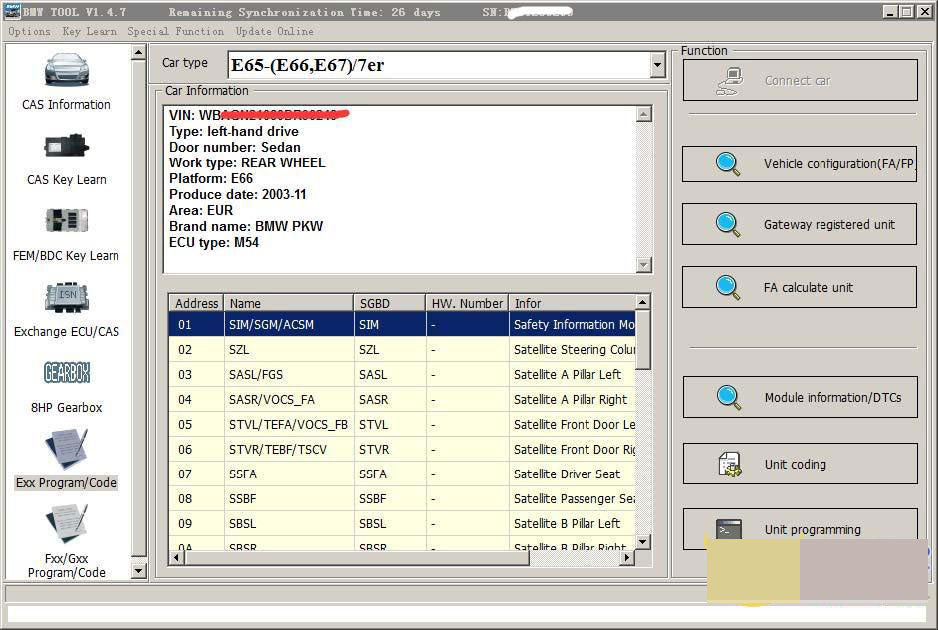

3. Registered unit information from gateway / Calculate adaptive control unit
Read registered unit information from gateway
Calculate adaptive control unit-calculate all control units of the current vehicle based on configuration information

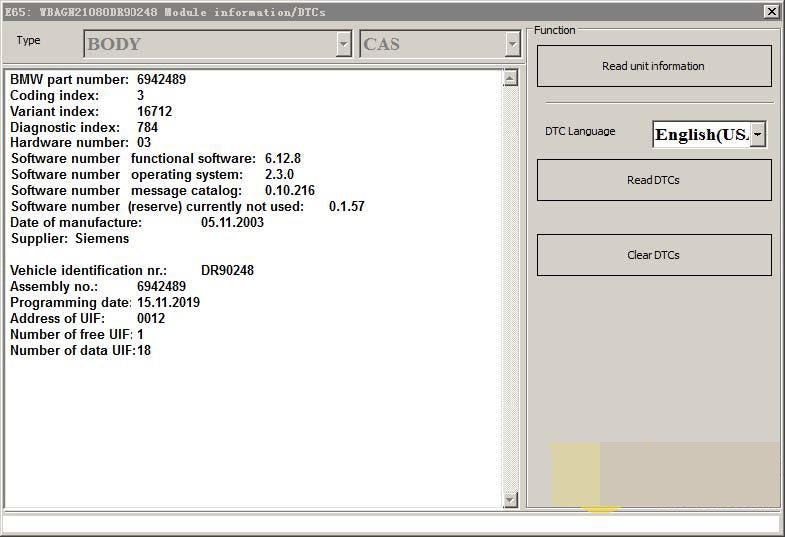

4. Module information/DTCs
Read the specific information of selected module, then read and clear DTCs .,etc

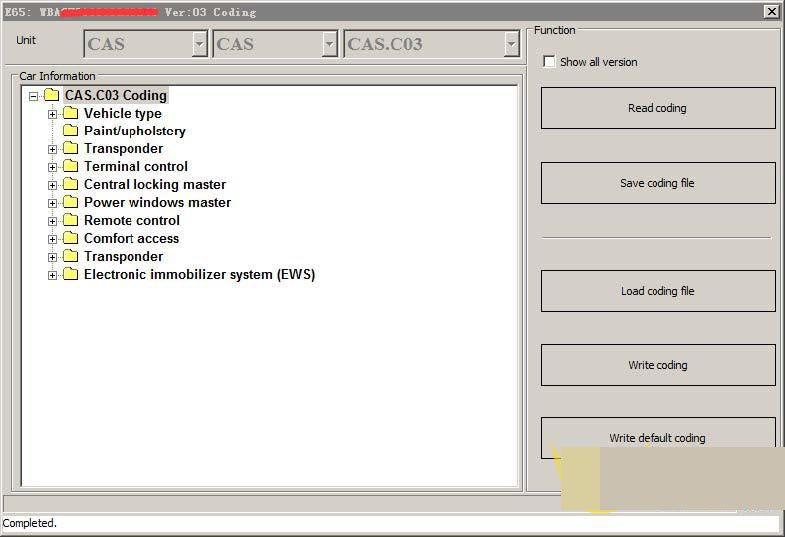

5. Unit coding
Read the coding information of selected unit, save coding, load coding, write coding and  calculate the default coding based on the vehicle configuration information etc.

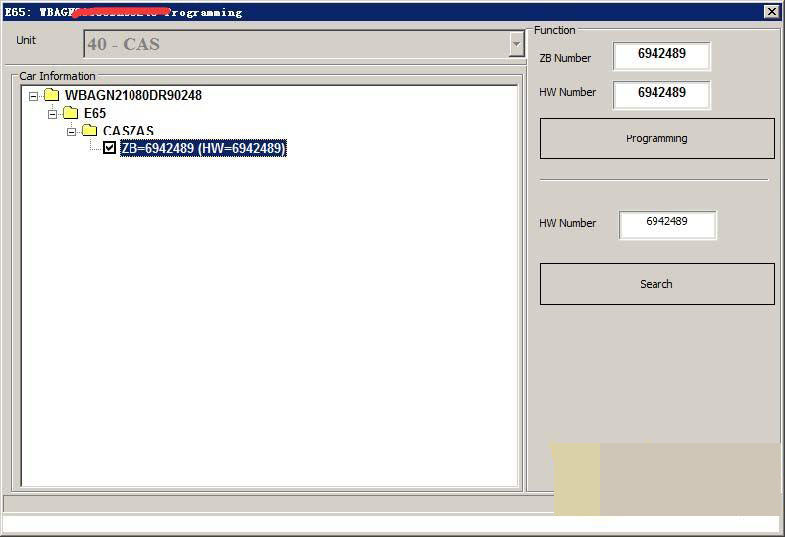

6. Module programming
According to the hardware version number and ZB version number in the current module, search for the supported programming files and perform programming functions





VVDI BIMTOOL Pro, VVDI BMW Tool and VVDI2 Comparison Table:


  VVDI BIMTOOL Pro VVDI BMW Tool VVDI2




Functions Locksmith, Programming, Coding Locksmith, Programming, Coding Locksmith
Update Software Online for free
Firmware use "update kit" update for free
Software Online for free
Firmware use "update kit" update for free
Software Online for free
Firmware use "update kit"
update for free
Support Programming System EWS to CAS (1, 2, 3, 3++ 4,4+) and the latest FEM/BDC system EWS to CAS (1, 2, 3, 3++ 4,4+) and the latest FEM/BDC system EWS to CAS (1, 2, 3, 3++ 4,4+)
Progrogramming Function Support Can and DOIP Support Can No






Package List:

1pc x VVDI BIMTool Pro Main Unit
1pc x OBD Cable
1pc x Ethernet Cable
1pc x USB Cable
1pc x ECU Reflash Cable
1pc x Plastic Box
