Lonsdor Super ADP 8A/4A Adapter for Toyota Lexus Proximity Key work with Lonsdor K518ISE K518S

Highlights:

1. Support 90% Toyota Lexus (up to 2021) proximity smart key programming no need pincode.
2. 8A: DST-AES 88 A8 A9 AA
3. 4A: HITAG-AES
4. Covers All Functions of Toyota AKL License
5. Need to Work together with Lonsdor K518ISE or K518S, All key lost also require the LKE Emulator.

Lonsdor Super ADP 8A/4A Adapter Functions:

Backup immodata
Add key by OBD
All key lost
Delete key
Free password to program dealer key & Lonsdor FT specific key

Supported List:

Toyota 8A
Camry/2013-2021, Highlander/2013-2021, Land Cruiser/2014-2021, Avalon HV/2019-2021, Prado/2014-2021, Crown/2015-2021, Alphard/2015-2021, Vellfire/2015-2021, Previa/2015-2021, C-HR/2018-2021,lzon/2018-2021, Wildlander/2018-2021, Rav4/2014-2021 Prius/2015-2021, Avalon/2019-2021, Corolla EX/2013-2019,Harrier/2021

Lexus 8A
UX series/2018-2021, RX series/2013-2021, NX series/2017-2021, LS series/2013-2021, IS series/2013-2021, GS series/2013-2021, ES series/2013-2021

Toyola 4A
Livin/2021, Allion/2021, Corolla/2019-, Corolla HV/2019-2021  Levin/2019-, Levin HVI/2019-2021

How to connect Lonsdor ADP Adapter:

Locate the smart box.
Connect Lonsdor ADP 8A/4A Adapter to K518 series programmer interface.
Disconnect the interface between the smart box and the car, then connect the smart box and ADP adapter via the professional wire harness.
Connect ADP adapter to the OBD port of the vehicle.

Operation:

Lonsdor K518 key prgrammer Connect with WiFi, then you can do the following operations based on the tips on the K518 series machine.

1. Backup IMMO data
2. Generate emulator key AKL (8A/4A)
3. Add smart keys
4. Delete smart keys

Note: No need to generate Lonsdor LKE smart key emulator when adding smart keys. However, you must generate Lonsdor LKE smart key emulator when all your keys are lost.

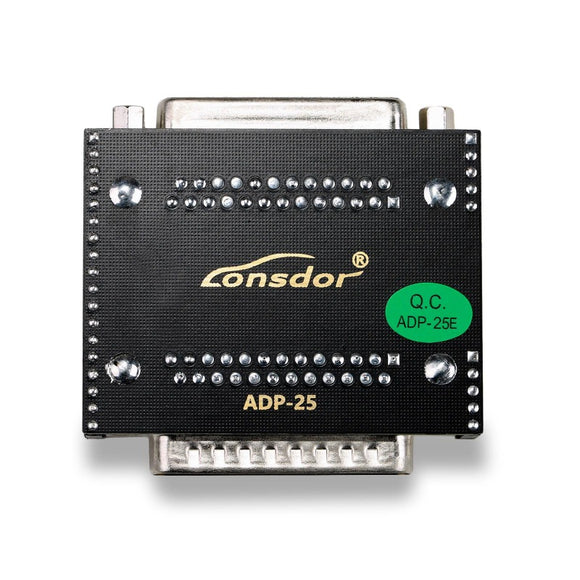

Lonsdor ADP Adapter Package:

1. 1pc x ADP-25 adapter
2. 1pc x 27P cable
3. 1pc x 24P cable
