Hantek iDSO1070A 2CH 70MHz 250MSa/s iPhone/iPad/Android/Windows Oscilloscope WIFI/USB Communication

  • $185.00
    Unit price per

Only 37 left!

Item No. LM99M097
Weight: 1.8 kg
Estimated: Standard 7-15 working days.
                      Expedited Shipping 3-6 working days.

iDSO1070A

iPhone/iPad/Android/Windows Oscilloscope, Multi-touch Operation.WIFI Communication (USB Communication), WIFI Direct Connection/ Router Connection.Build-in Lithium Battery with 4 hours endurance, no need of External Power. Floating Measurement is available, safe and convenient.Can be connected with iPad and iPhone at the same time. When operating on iPad, it can also be observed on iPhone.Good mechanical design with small size which is convenient for traveling.


Features:

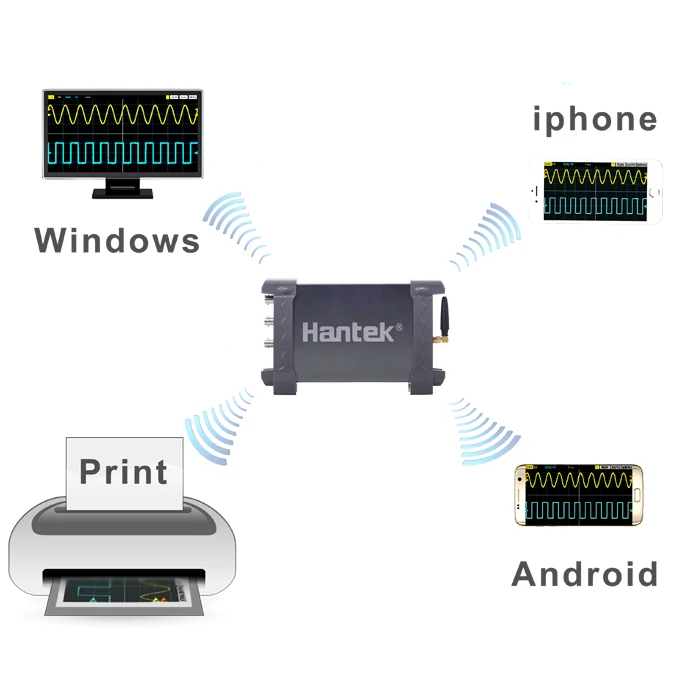

iPhone/iPad/Android/Windows Oscilloscope, Multi-touch Operation.

WIFI Communication (USB Communication), WIFI Direct Connection/ Router Connection.

Build-in Lithium Battery with 4 hours endurance, no need of External Power. Floating Measurement is available, safe and convenient.

70MHz Bandwidth, Real-time Sampling Rate 250MSa/s


Can be connected with iPad and iPhone at the same time. When operating on iPad, it can also be observed on iPhone.

Good mechanical design. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved

Small size which is convenient for traveling.

Software Support:IOS,Android,Win10,Win8, Win7, Windows NT ,VISTA, etc.


More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.

FFT spectrum analyzer

Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.

The waveform data can be output as EXCEL, BMP, JPG according to time and voltage.


Model

iDSO1070A

Bandwidth

70MHz

Channel

2 CH

Real-time Sampling Rate

250MSa/s(singal channel), 125MSa/s(two channels)

Sampling Mode

Sampling,Vmax,Vrms

Average Sampling

Average waveform, times: 4, 8, 16, 32, 64, 128

Memory Depth

6K

Rise time

≤5ns

Time BasePrecision

±50ppm

Time Base Range

45s/div-500s/div(1-2-4sequences)

Input Coupling

DC, AC, GND

Input Impedance

Resistance: 1MΩ; Capacitance:25pF

Probe Attenuation Coefficient Setting

1×, 10×, 100×,1000

Max Input Voltage

35Vpk(DC+peak)

Waveform Interpolation

Step, Linear, Sin(x)/x

Input Sensitivity

10mV/div~5V/div

Vertical Resolution

8Bit

Vertical Displacement Range

10mV~5V/div@x1probe;100mV~50V/div@x10probe;

1V~500V/div@x100probe;10V~5KV/div@x1000probe

Position Range

±4division

Low Frequency Response

≤10Hz(at input BNC)

DC Gain Accuracy

±3%

Bandwidth Limit

20MHz

Trigger Mode

Auto, normal, signal

Trigger Type

Edge,Alternative

TriggerPrecision

±4division

Trigger Range

±4V

Trigger Sensitivity

0.02 division

Trigger Source

CH1,CH2,EXT

Waveform Signal Process

+,-,x,÷,FFT, invert

Temperature

Operating: 0C-40C-; Non-operating: -20C--60C

Humidity

Below 35C, ≤90%relativehumidity;35C-40C, ≤60%relativehumidity

Cursors Measurement

Cross, Trace, Horizontal, Vertical

Auto Measurement

Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Volume

190mm *100mm * 35mm

Weight

0.7KG

Accessory

2passive probes -PP80
