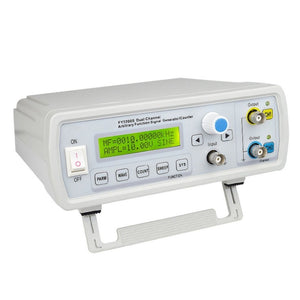

FY3200S-06M 6MHz DDS Dual-channel Function Signal Generator Arbitrary Waveform Generator

Frequency

Model

FY3200S

-6MHz

FY3200S

-12MHz

FY3200S

-20MHz

FY3200S

-24MHz

FY3200S

-25MHz

Sine

0~6MHz

0~12MHz

0~20MHz

0~24MHz

0~25MHz

Square

0~6MHz

0~6MHz

0~6MHz

0~6MHz

0~6MHz

Ramp/Triangle

0~6MHz

0~6MHz

0~6MHz

0~6MHz

0~6MHz

Pulse

0~6MHz

0~6MHz

0~6MHz

0~6MHz

0~6MHz

TTL/CMOS

0~6MHz

0~6MHz

0~6MHz

0~6MHz

0~6MHz

Arbitrary wave

0~6MHz

0~6MHz

0~6MHz

0~6MHz

0~6MHz

Resolution

0.01Hz(10mHz)

Accuracy

± 5×10^-6

Stability

±1×10^-6/ 3 Hours

Phase Range

0~359°

Phase Resolution

1°

Waveform Characteristics

Waveforms

Sine, Square, Triangle (Ramp), Arbitrary, Sawtooth, Pulse, Noise, etc.

Waveform Length

2048Points

Sampling Rate

250MSa/s

Vertical Resolution

12 Bits

Sine

Harmonic Suppression

≥45dBc(<1MHz);≥40dBc(1MHz~20MHz);

Total Harmonic Distortion

<0.8% (20Hz~20kHz,0dBm)

Square

Rise/Fall Time

≤20ns

Overshoot

≤7.5%

Duty Cycle

0.1%~99.9%

Sawtooth

Linearity

≥98% (0.01Hz~10kHz)

Output characteristics

Amplitude (50Ω)

10mVpp~20Vpp (No load)

Amplitude Resolution

10mV

Amplitude Stability

±0.5%/ 5 Hours

Amplitude flatness

±5%(<10MHz)；±10%(>10MHz);

Waveform Output

Impedance

50Ω±10%（Typical）

Protection

All channels can work more than 60 seconds when the load is short-circuited.

Dc Offset

Offset Range

±10V

Offset Resolution

0.01V

TTL Output

Dual-channel TTL electric level synchronize with CH1 and CH2. Phase differences are adjustable.

Electrical Level Amplitude

>3Vpp

Fan-out

>20 TTL Load

Rise/Fall Time

≤20ns

CMOS Output

Low Electric Level

<0.3V

High Electric Level

1V~10V

Rise/Fall Time

≤20ns

External Measurement

Frequency Meter

Range

1Hz~100MHz (Gate Time 1S)

Counter

Range

0-4294967295

Voltage Input Range

2Vpp~20Vpp

Sweep

Only CH1 available

Sweep Type

Linear or Logarithm

Sweep Objects

Frequency

Sweep Time

1S~999S/Step

Sweep Range

Starting position and Finishing position can be set arbitrarily.

General Specifications

Display

Mode

LCD1602 in English

Save & Load

Amount

20

Position

01 to20 (SAVE P_ON FREQ for default value)

Interface

Type

USB to Serial interface.

Communicating Speed

9600bps

Power

Voltage

Range

AC85V~AC260V

Buzzer

Can be turned on/off by setting.

Environment

Temp.：0~40℃  Humidity：﹤80%

Dimension

200mm（Length）X190mm（Width）X90mm（Height）

Weight

Net Weight: 750g，  Gross Weight: 900g
